API

PMetrium Native supports Swagger UI available by http://localhost:7777/swagger/index.html

GET /HealthCheck/Android

Endpoint allows us to verify that PMetrium Native Host has been started successfully and that we could execute performance tests for Android. Example:

> curl http://localhost:7777/HealthCheck/Android

GET /HealthCheck/IOS

Endpoint allows us to verify that PMetrium Native Host has been started successfully and that we could execute performance tests for IOS. Example:

> curl http://localhost:7777/HealthCheck/IOS

GET /Android/Start

Endpoint is responsible for sending a signal to the PMetrium Native framework to start a performance test pushing scripts to the device and executing them. Example:

> curl -G  -d "device=YourAndroidDeviceName" -d "applicationName=com.example.pmnative" http://localhost:7777/Android/Start

Parameter name	Type	Required
device	string	yes
applicationName	string	no
cpuApp	bool	no
cpuTotal	bool	no
ramTotal	bool	no
ramApp	bool	no
networkTotal	bool	no
networkApp	bool	no
batteryApp	bool	no
framesApp	bool	no
space	string	no
group	string	no
label	string	no

Example of disabling cpuTotal metric:

> curl -G  -d "device=YourAndroidDeviceName" -d "applicationName=com.example.pmnative" -d "cpuTotal=false" http://localhost:7777/Android/Start

caution

By default, all metrics will be gathered. You could use optional parameters to explicitly turn off specified metrics.

In case you would like to add some tags for additional quering your metrics in Grafana you may use next optional parameters:

• space
• group
• label

Example:

> curl -G \
    -d "device=YourAndroidDeviceName" \
    -d "applicationName=com.example.pmnative" \
    -d "space=Ukraine" \
    -d "group=Kiev" \
    -d "label=GloryToUkraine" \
    http://localhost:7777/Android/Start

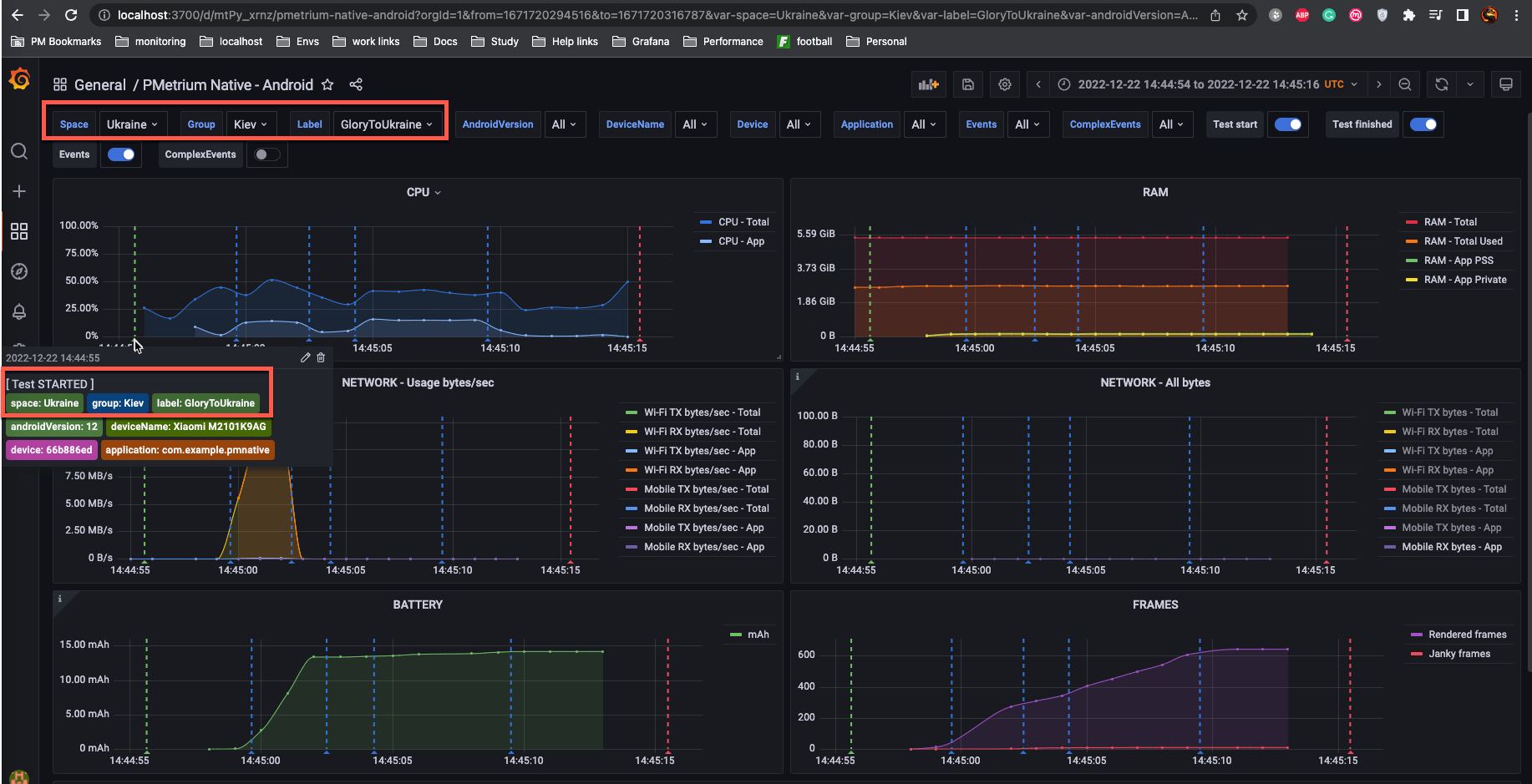

Result:

GET /Android/Stop

Endpoint is responsible for sending a signal to the PMetrium Native framework that the performance test has ended and the framework is ready to proceed with parsing of gathered metrics. Example:

> curl -G -d "device=YourAndroidDeviceName" http://localhost:7777/Android/Stop

GET /IOS/Start

Endpoint is responsible for sending a signal to the PMetrium Native framework to start a performance test for IOS device. Example:

> curl -G  -d "device=YourIOSDeviceName" -d "applicationName=PM-Native" http://localhost:7777/IOS/Start

Parameter name	Type	Required
device	string	yes
applicationName	string	no
space	string	no
group	string	no
label	string	no

space, group and label have the same meaning as for Android and will affect only IOS metrics and Grafana Dashboard.

Please also note, that device here means udid of the IOS device

GET /IOS/Stop

Endpoint is responsible for sending a signal to the PMetrium Native framework that the performance test has ended and the framework is ready to proceed with parsing metrics. Example:

> curl -G -d "device=YourIOSDeviceName" http://localhost:7777/IOS/Stop
